RunCam Eagle FPV Camera
Global WDR
Full-Screen Real-Time Wide Dynamic
- Global WDR
- 800TVL
- High resolution
- Clearly present details in
dark areas of the image
4:3 Eagle FOV 140
True image display
16:9 Eagle FOV 130
True image display
High-strength aluminum frame
Easy to be mounted in various ways
Magnesium alloy shell
Strong and light at the same time !

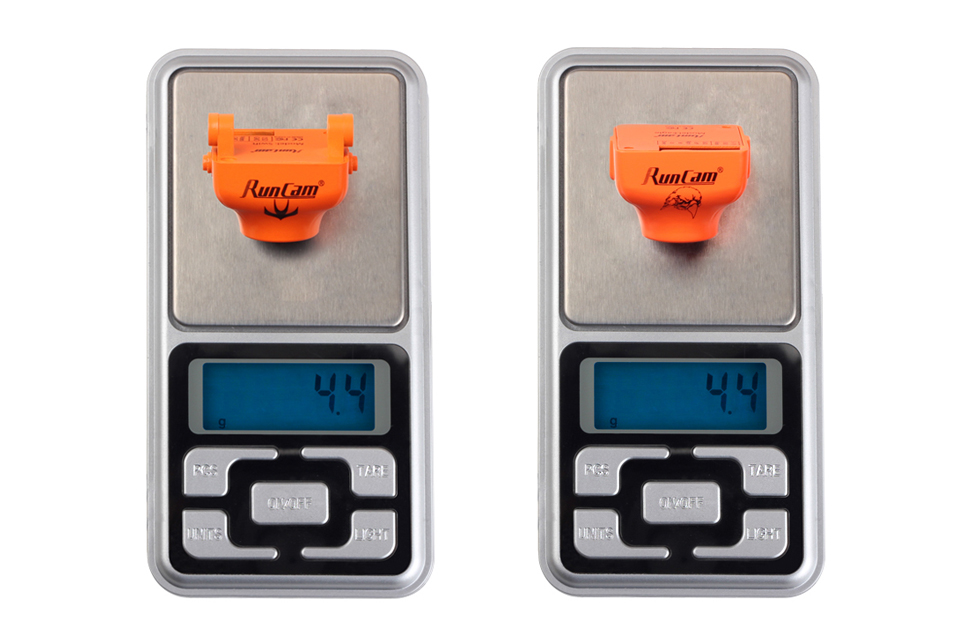

Weight comparison between plastic case of Swift and metal case of Eagle.
Package Includes:
FPV Silicone wire:
RCA Video power cable:
5D-OSD menu cable:
Bracket:
Specifications:
| Model | RunCam Eagle |
| Image Sensor | 1/1.8″ CMOS Sensor |
| Horizontal Resolution | 800TVL |
| Lens FOV | 16:9 Version 130° / 4:3 Version 140° |
| Signal System | NTSC/PAL Switchable on OSD menu |
| Synchronization | Internal |
| OSD Set | Yes |
| S/N Ration | >50dB |
| Electronic Shutter Speed | Auto |
| Min.Illumination | 0.01Lux/1.2F |
| WDR | Global WDR |
| Day/Night | Auto/External/Color/B&W |
| Video Output | CVBS |
| Power Input | 5-17 VDC |
| Housing Material | Magnesium Alloy |
| Net Weight | 16g |
| Dimensions | 26mm * 26mm * 31mm |
Download User Manual
User Manual
