LS-800D 5.8G 40CH Raceband FPV Video Goggles

LS-800D FPV Video Goggles features

• Separable design ,5 inch screen canbe used as small monitor on radio controller or with tripod
• HD high brightness 5inch LCD specially tuned for FPV racing or Model airplane
• Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.
• Come with advanced auto-searching function ad show yout the working frequency on screen
• Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time
• Ergonomic design fit your faces
• super-wide visible angle up to 82 degree
• 92%transparent lens adopted ,no distort,no blur on the adage of screen;
• Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game
• 5inch 800*480px HD high brightness LCD



Product Specification:

Body

Dimension: CNT Size. 205*200*105, Product Size.180x146x87mm

Weight: N.W. 390g with 2hr 2000mAh battery, G.W. 690g

Belt: three-Ways adjustable belt

Screen

screen size: 5.0 inch

Screen resolution: 854*480(No blur after enlarge by the lens)

Screen brightness; 450cd/m2 with special high brightness backlight LED for outdoor FPV

View Angle: 6 O’CLOCK

Lens

3x boost of the video to acquire intense feel-in-there video

92% transparent rate no distort of light

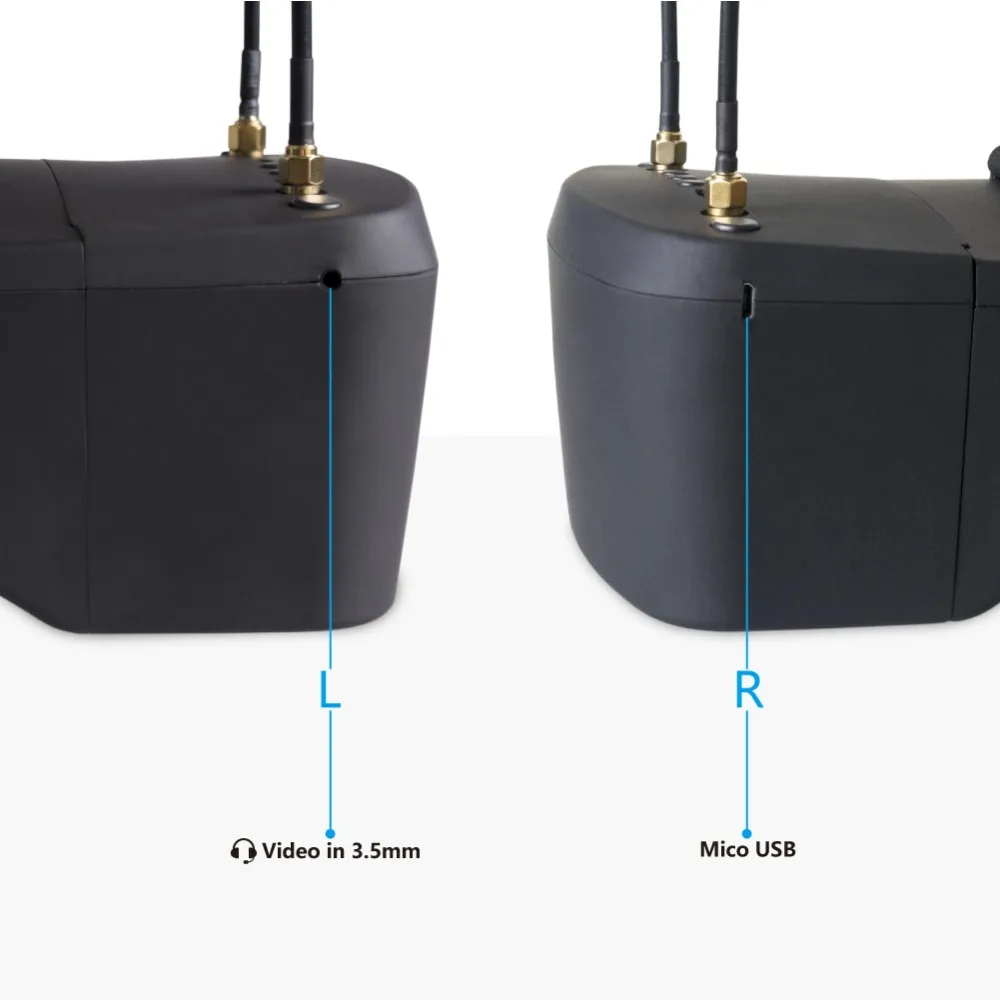

Inputs/Outputs

1.  Input CVBS
2.  Headphone sound output
3.  TF Card(C10)
4.  USB DC5V IN, the device operating current of 650mA@5V,built-in battery maximum charge current of 650mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.

Battery:

Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.

Band and Channel Selection

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP
A	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
B	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ	5809 MHZ	5828 MHZ	5847 MHZ	5866 MHZ
D	5705 MHZ	5685 MHZ	5665 MHZ	5645 MHZ	5885 MHZ	5905 MHZ	5925 MHZ	5945 MHZ
E	5740 MHZ	5760 MHZ	5780 MHZ	5800 MHZ	5820 MHZ	5840 MHZ	5860 MHZ	5880 MHZ
R	5658 MHZ	5695 MHZ	5732 MHZ	5769 MHZ	5806 MHZ	5843 MHZ	5880 MHZ	5917 MHZ

1 x Pair of FPV Goggles

1 x Mushroom Antenna

1 x Flat Antenna

1 x Power Adapter

1 x USB Cable

1 x AV Out Cable

1 x Storage Case

1 x English Manual

Operation Instructions



KEY

1. K1:MENU/Power

Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is use as the Return.

1. K2:FUN

Default mode, Short press for switch RF MOD and AV MOD; MENU pressed, this button is use as the DOWN.

1. K3:REC/PIC

Default mode, Short press for recorder; Long press for stop recording; If recording Short press for catch pictures; MENU pressed, this button is use as the UP.

1. K4:CH+/Band+

Default mode, Short press for CH 1~8 cycles; Long press for Band+ option A,B,D,E,F,R cycle selection; MENU pressed, this button is use as the Enter.

1. K5:Search/VOL

Default mode, Short press for automatically search signals to a certain signal strength and stops on that channel; The signal is not found ,the screen show no signal; Long press for Volume control,K2->volume -,K3->volume +;





Playback

Call MENU and select Playback (Short Press K1 button to call menu, and use K4 button to select Playback mode )

Review/Replay in Playback mode

Buttons have different function in playback mode

Record file: MOV, PAL (720*576px) , NTSC (720*480px) progressive

Support up to 128G TF card (C10 recommend)

K1: Playback menu (volume control/file delete/protect)

K2: UP/ fast backward<<

K3: DOWM/ fast backward>>

K4: Select/Play/ Pause

K5: Quit Playback mode

NOTE: If the device is not used for a long time, please charged once every four months, inorder to protect the battery.
